Pharma glass Ampoule Filling and Sealing Machine

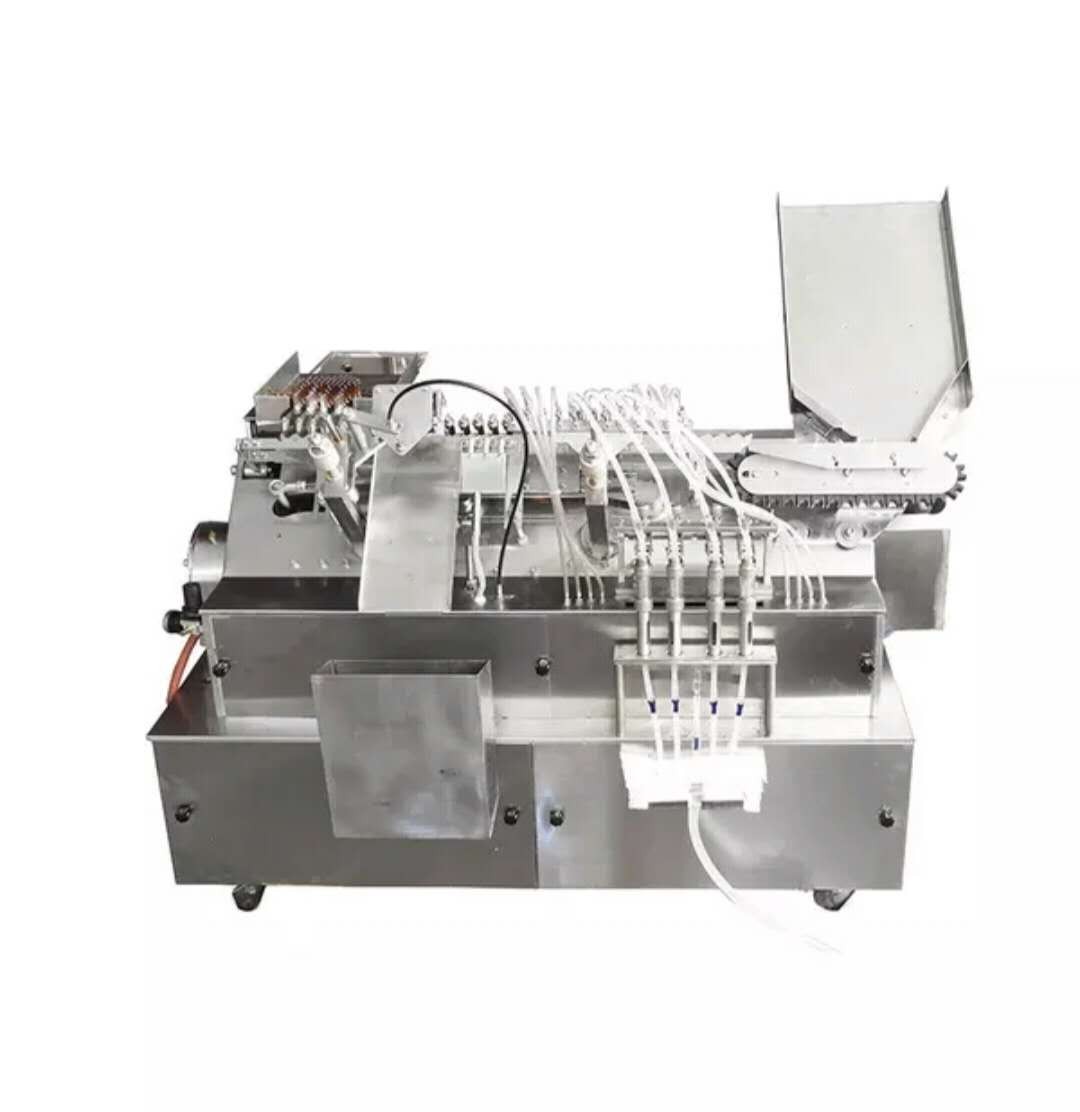

Glass Ampoule filling and sealing machine
Ampoule Filling & Sealing Machine is uses for the filling & sealing of glass ampoules. Machine is widely uses in pharmaceutical, biotech, cosmetic & chemical industry. We manufacture Ampoule Filling & Sealing Machine as per our standard model as well as custom made models
Machine built on principal of slant travel of ampoules while filling & sealing to take care wide variation of ampoule neck dimensions, thicknesses and ovality of available ampoules.
Unit built on Stainless Steel square pipe frame & totally encompassed with Stainless Steel coverings in pleasing matt finish. Large openings available on bottom side of the machine for absolute cleaning.
The pendant type electrical control panel is lifted from machine for ease of operation and safety
Salient Features
Compact GMP model
Production output ranging from 30 ampoules/minute to 150 ampoules/minute
All contact parts made from AISI SS 316L & other Non-contact parts made from AISI SS 304.
Machine is suitable to fill 1ml to 20ml ampoules and minimum change over parts from 1ml to 20ml ampoule size
"No Ampoule - No Filling" system
Ampoule neck centering during gas flushing and filling operations
Possibility of nitrogen gas flushing before, during and after filling
Full accessibility allows easy maintenance
Machine equipped with pre-warming station
Minimum change over time, little maintenance & easy cleaning
